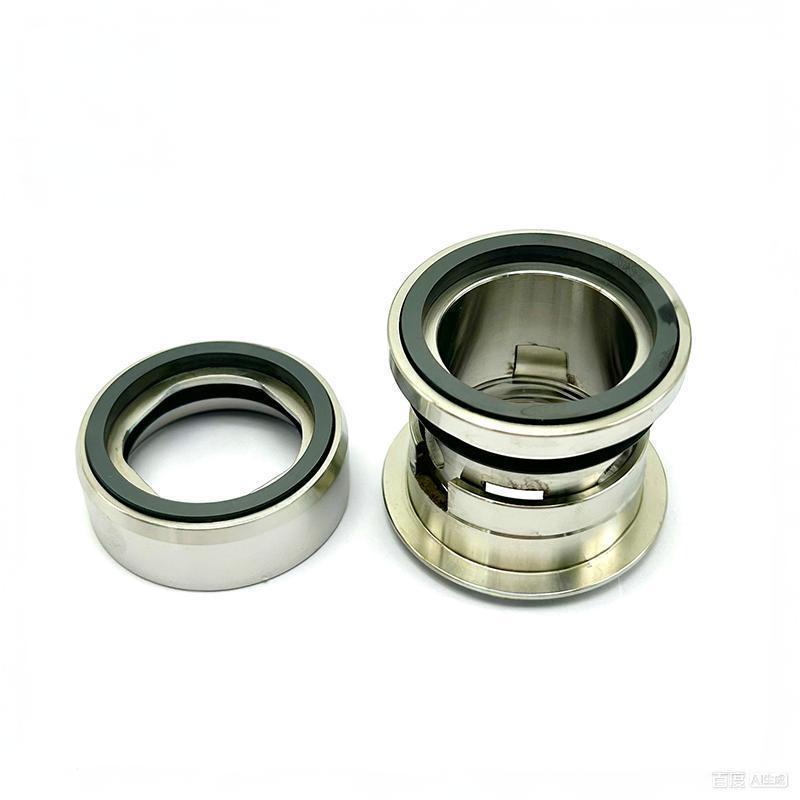

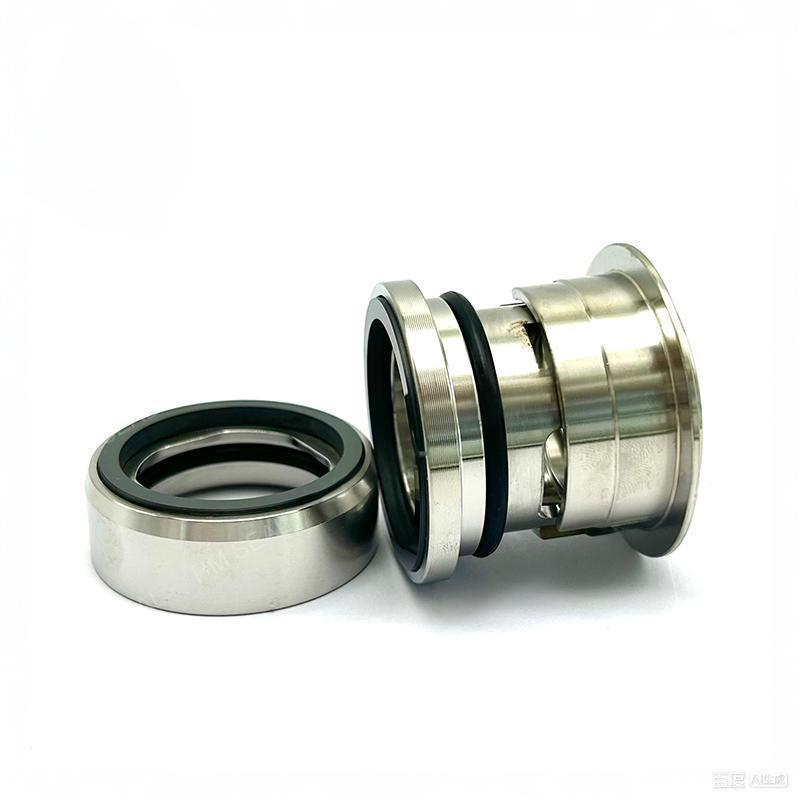

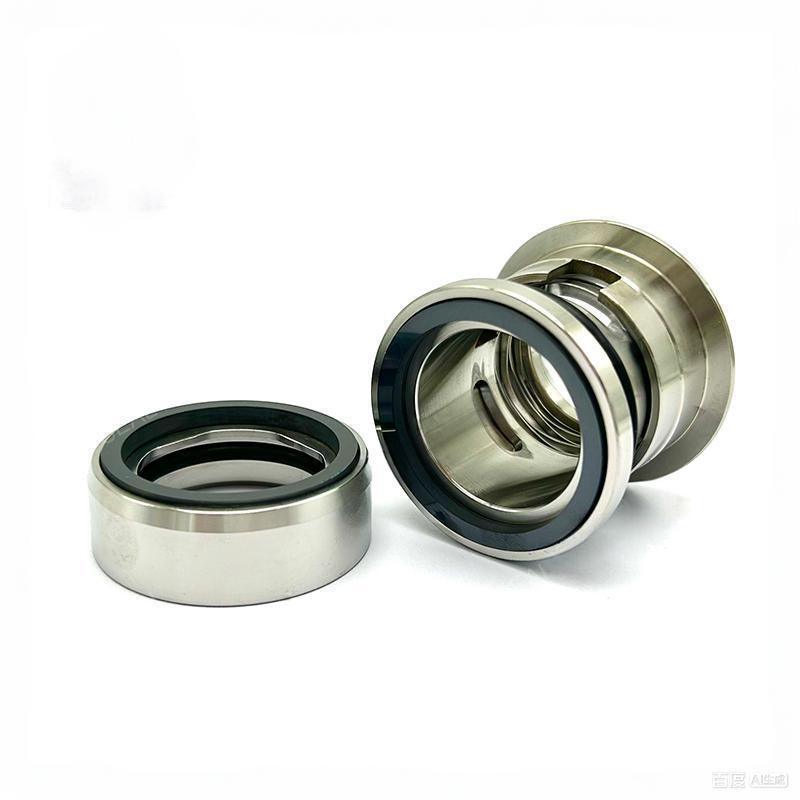

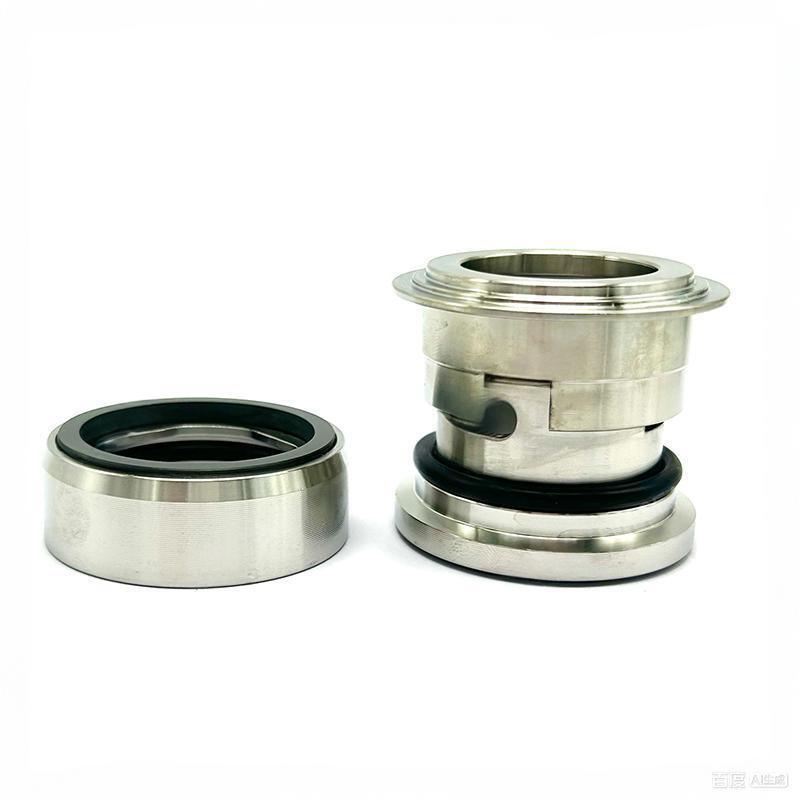

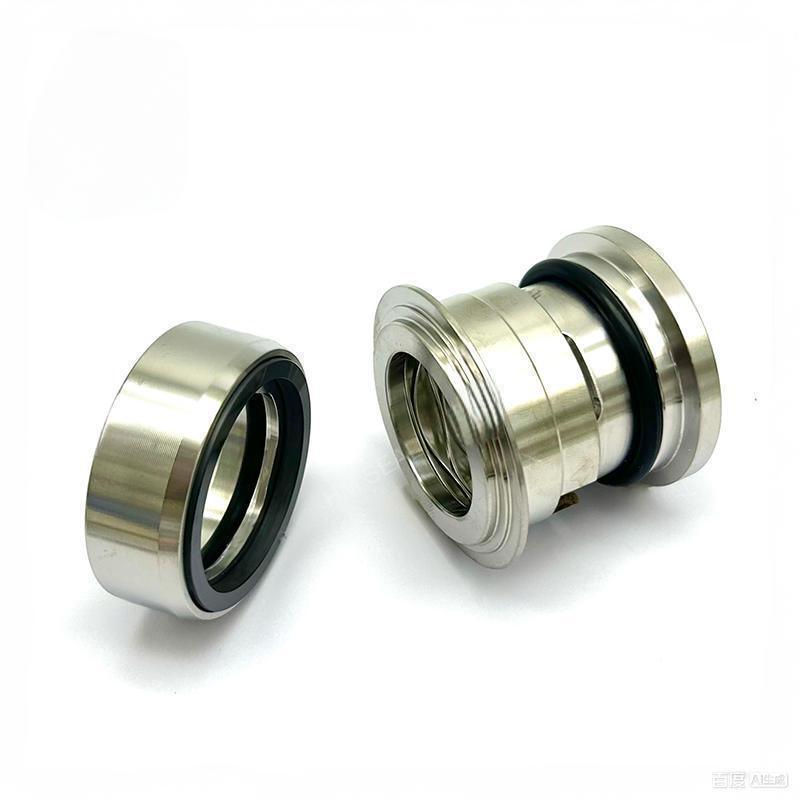

Mechanical Seal SNS1 30MM 40MM 50MM 60MM For SNSS A Type Pumps Silicon Carbide/VIT/SS304
Mechanical Seal SNS1 30MM 40MM 50MM 60MM For SNSS A Type Pumps Silicon Carbide/VIT/SS304 Mechanical Seal SNS1 30MM 40MM 50MM 60MM For SNSS A Type Pumps Silicon Carbide/VIT/SS304 Mechanical Seal SNS1 30MM 40MM 50MM 60MM For SNSS A Type Pumps Silicon Carbide/VIT/SS304 Mechanical Seal SNS1 30MM 40MM 50MM 60MM For SNSS A Type Pumps Silicon Carbide/VIT/SS304 Mechanical Seal SNS1 30MM 40MM 50MM 60MM For SNSS A Type Pumps Silicon Carbide/VIT/SS304
اکنون تماس بگیرید

Mechanical Seal SNS1 30MM 40MM 50MM 60MM For SNSS A Type Pumps Silicon Carbide/VIT/SS304

مقدار حداقل تعداد سفارش : 100 عدد قیمت : Negotiated
جزئیات بسته بندی : جعبه به عنوان نیاز زمان تحویل : 10 روز
شرایط پرداخت : T/T، Western Union، L/C قابلیت ارائه : 10000000 قطعه در ماه
محل منبع: ساخت چین نام تجاری: JR
گواهی: iso9001 شماره مدل: SNS1

اطلاعات تکمیلی
تایپ کنید: مهر و موم مکانیکی تک فنری SNS1 مواد: sic sic fkm cer car nbr
تابع: برای پمپ روغن، پمپ آب بسته حمل و نقل: جعبه
کد HS: 848420090 مشخصات: مهر و موم مکانیکی تک فنر
گواهی: ISO9001 استاندارد یا غیر دولتی: استاندارد تک فنری سیل SNS1
سبک: مهر و موم مکانیکی SNS1 اندازه: 30 میلی متر 40 میلی متر 50 میلی متر 60 میلی متر

توضیحات محصول

Mechanical Seal SNS1 30MM 40MM 50MM 60MM For SNSS A Type Pumps Silicon Carbide/VIT/SS304



Operations Conditions OF Water Pump Shaft Seal​ :

  1. Sulzer A type pumps
    SNS1 30 SNS1F 30 SNS1G 30 SNS2 30 SNS2P 30 SNS1 40 SNS1F 40 SNS1G 40 SNS2 40 SNS2P 40 SNS1 50 SNS1F 50 SNS1G 50 SNS2 50 SNS2P 50 SNS1 60 SNS1F 60 SNS1G 60 SNS2 60 SNS2P 60
  2. Single Spring Mechanical Seal
  3. Speed: General Speed Mechanical Seal
  4. Temperature: General Temperature Mechanical Seal
  5. Specification: Inner Diameter: 30MM 40MM 50MM 60MM
  6. Temperature:-20ºC to +120ºC
  7. Pressure:≤1.5MPa
  8. Speed:≤10m/s

Materials Of Water Pump Shaft Seal:

  • Structural Features: single end, unbalanced, independent direction of rotation, rubber bellow transmission. This component has a compact structure and it is easy to install. The bellow and the spring provide pressure compensation to the seal faces. The rubber bellow design prevents possible radial run-out so the floatabilitiy of the rotary ring is increased.
  • Stationary Ring:Ceramic(Alumina),Silicon Carbide Reaction Bonded
  • Rotary Ring:Q5,Resin Impregnated Carbon Graphite(Furan),Silicon Carbide Reaction Bonded
  • Secondary Seal:Fluorocarbon Rubber(FKM),Nitrile(NBR),Ethylene Propylene(EPDM)
  • Spring and Metal Parts:Stainless Steel
  • Seat Types:
  • Applications:Clean Water



Performance Capabilities:



Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 6 bar
Speed
Up to 10 m/s
End play/axial float allowance
±0.1mm
Size
30MM 40MM 50MM 60MM
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Detail
1.From 8mm to 30mm is packed in plastic sheets grouply and M box.

2.From 32mm to 70mm is wrapped in plastic paper individually then grouply in M box.

3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.
  • Single Spring Mechanical Seal Sulzer A type pumps
    SNS1 30 SNS1F 30 SNS1G 30 SNS2 30 SNS2P 30 SNS1 40 SNS1F 40 SNS1G 40 SNS2 40 SNS2P 40 SNS1 50 SNS1F 50 SNS1G 50 SNS2 50 SNS2P 50 SNS1 60 SNS1F 60 SNS1G 60 SNS2 60 SNS2P 60

Mechanical Seal SNS1 30MM 40MM 50MM 60MM For SNSS A Type Pumps Silicon Carbide/VIT/SS304 0Mechanical Seal SNS1 30MM 40MM 50MM 60MM For SNSS A Type Pumps Silicon Carbide/VIT/SS304 1Mechanical Seal SNS1 30MM 40MM 50MM 60MM For SNSS A Type Pumps Silicon Carbide/VIT/SS304 2Mechanical Seal SNS1 30MM 40MM 50MM 60MM For SNSS A Type Pumps Silicon Carbide/VIT/SS304 3

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal,Single Spring Mechanical Seal, Single Spring Mechanical Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.



FAQ



Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
