مهر و موم صورت صورت نوع 82 مهر و موم 16 میلی متری تک فنر
تماس با شخص : Davis
WhatsApp : +8618130083767
| مقدار حداقل تعداد سفارش : | 1 پی سی | قیمت : | USD50-1000 |
|---|---|---|---|
| جزئیات بسته بندی : | جعبه به عنوان نیاز | زمان تحویل : | 20-30 روز |
| شرایط پرداخت : | T/T ، Western Union ، L/C | قابلیت ارائه : | 100000 قطعه در ماه |
| محل منبع: | ساخت چین | نام تجاری: | JR |
|---|---|---|---|
| گواهی: | iso9001 | شماره مدل: | EMLL |
|
اطلاعات تکمیلی |
|||
| مواد: | sic sic fkm | تابع: | برای پمپ روغن ، پمپ آب |
|---|---|---|---|
| کد Hs: | 848420090 | گواهی: | ISO9001 |
| تایپ کنید: | برای پمپ ها و میکسرهای EMU استفاده می شود | استاندارد: | استاندارد |
| اندازه: | اندازه شافت 35/50/75 میلی متر اندازه سفارشی موجود | برنامه: | پمپ های غوطه وری Wilo Emu |
| مشخصات: | برای مهر و موم مکانیکی پمپ EMU | سبک: | مهر و موم مکانیکی ، حلقه مهر و موم کاربید سیلیکون |
توضیحات محصول

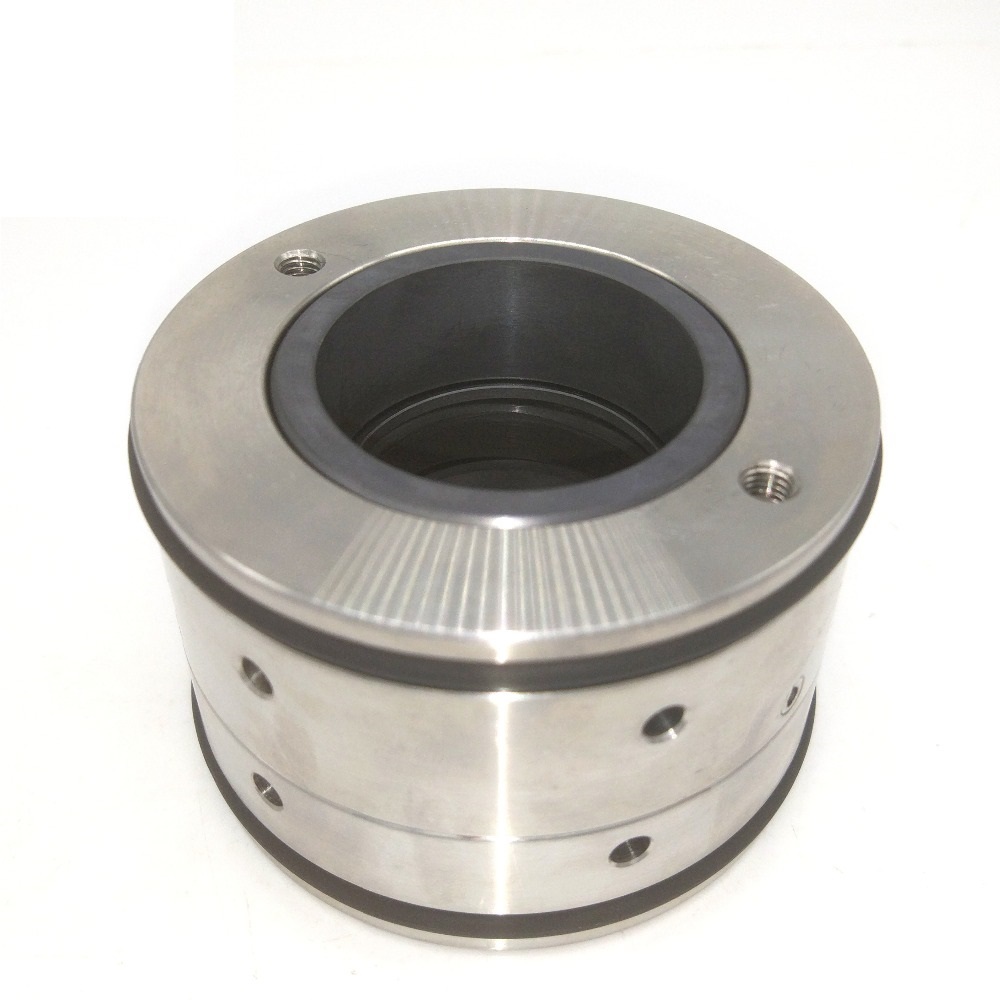

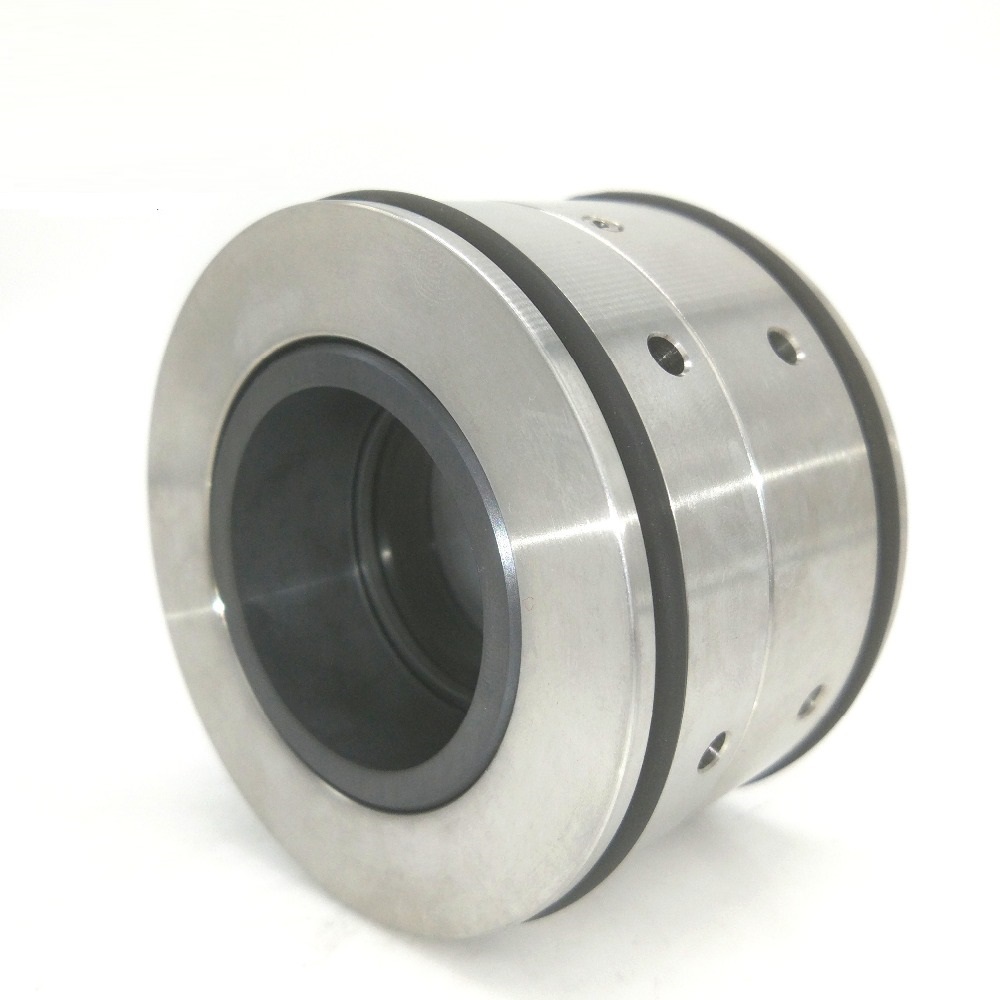

Double Seal For EMU Pump Cartridge Seal Mechanical Seal 35mm/50mm/75mm
Operational Conditions:
Materials:
Performance Capabilities
|
Temperature
|
-40℃ to 200℃, dependent on the elastomer
|
|
Pressure
|
Up to 8 bar
|
|
Speed
|
Up to 18 m/s
|
|
End play/axial float allowance
|
±0.1mm
|
|
Size
|
35mm,50mm,75mm
|
|
Brand
|
JR
|
|
Face
|
Carbon, SiC, TC
|
|
Seat
|
Carbon, SiC, TC
|
|
Elastomer
|
NBR, EPDM, FKM etc.
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
|
Idividual Packing
|
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
|
Direct-fit service kit for Wilo-EMU FKT-27.1 submersible motor equipped with mechanical seal 6037443. Includes the primary sealing components for a standard rebuild.
Compatibility: For Wilo-EMU submersible motor FKT-27.1,FK-202
What’s included:
Mechanical seal: WILO 6037443
O-ring kit: WILO #6044283
Cross-reference:
U.S. Seal: VGM-2962
AESSEL: SAN-S0EC-DDZDDZ1-0500
*Disclaimer: For the Wilo-EMU submersible line we categorize by motor model, not pump model.
![]()
![]()
We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,
All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA
Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.
At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
