خانه محصولاتمهر و موم مکانیکی پمپ8B2 2.625" Armstrong Series 4300 Ab2 John Crane 8b2 Mechanical Seal

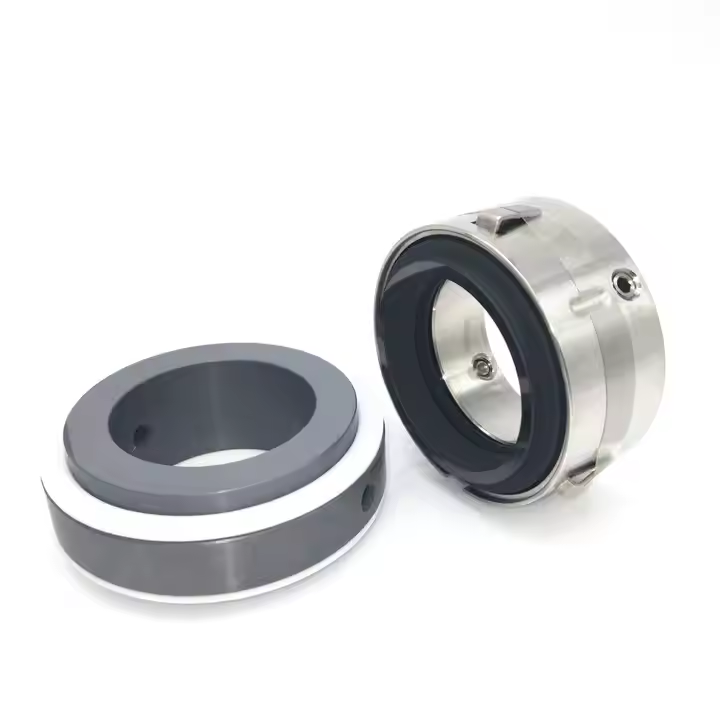

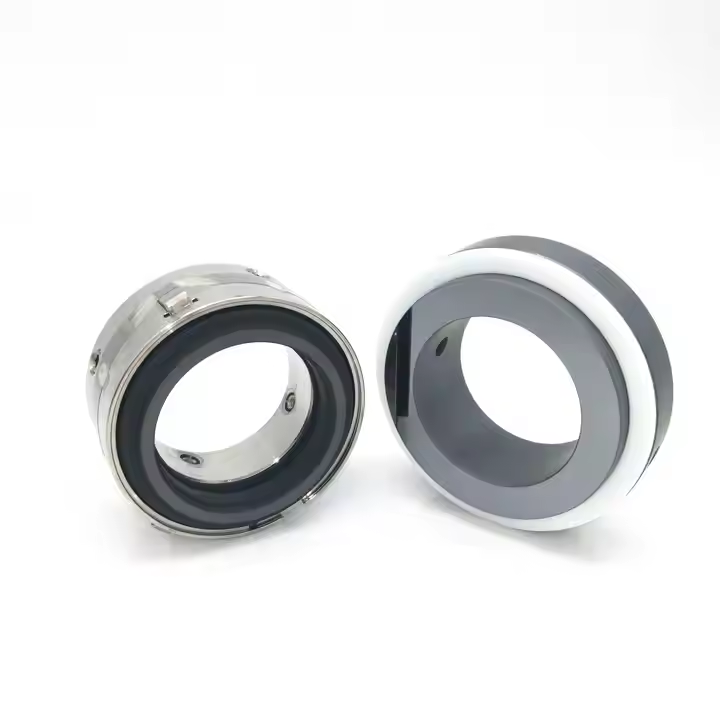

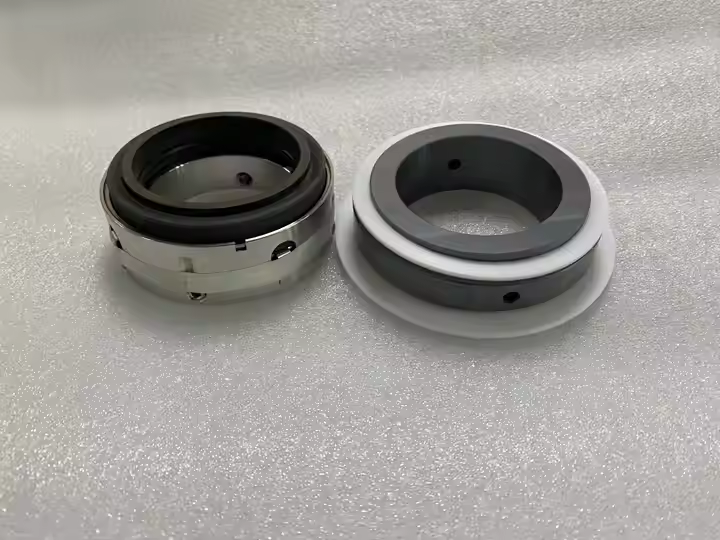

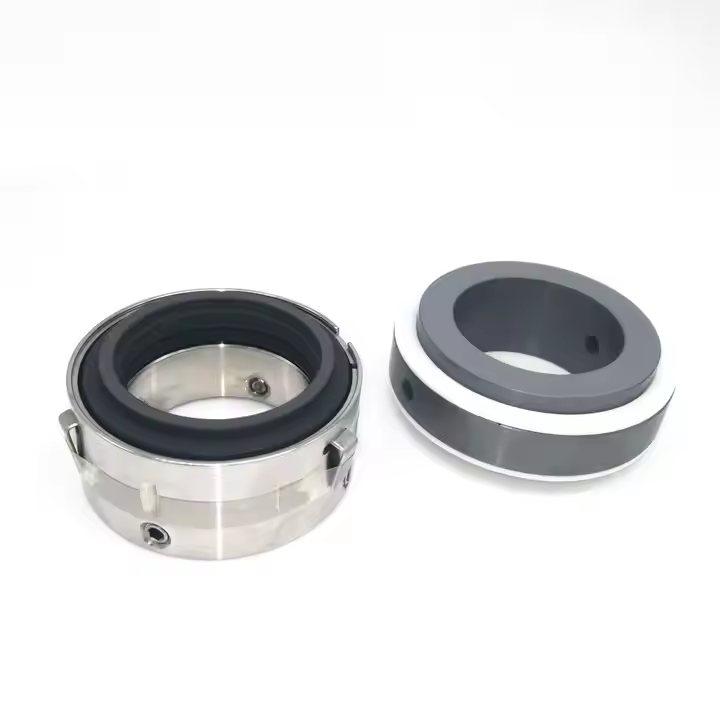

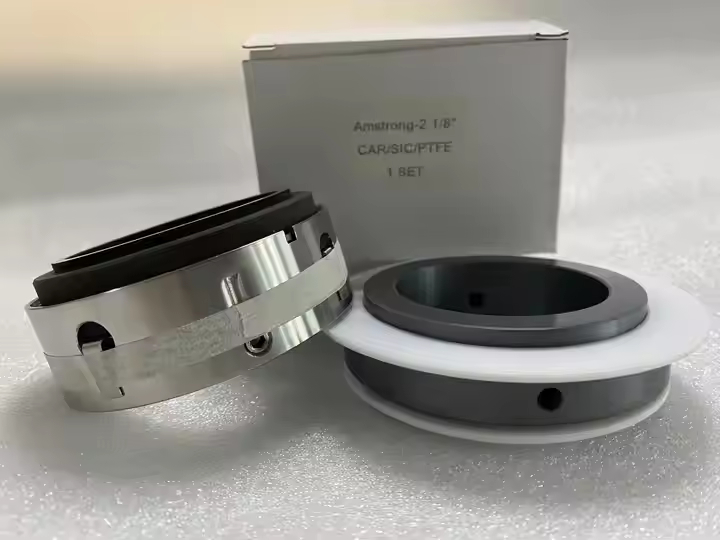

8B2 2.625" Armstrong Series 4300 Ab2 John Crane 8b2 Mechanical Seal
8B2 2.625" Armstrong Series 4300 Ab2 John Crane 8b2 Mechanical Seal
8B2 2.625 8B2 2.625" Armstrong Series 4300 Ab2 John Crane 8b2 Mechanical Seal 8B2 2.625" Armstrong Series 4300 Ab2 John Crane 8b2 Mechanical Seal 8B2 2.625" Armstrong Series 4300 Ab2 John Crane 8b2 Mechanical Seal 8B2 2.625" Armstrong Series 4300 Ab2 John Crane 8b2 Mechanical Seal 8B2 2.625" Armstrong Series 4300 Ab2 John Crane 8b2 Mechanical Seal
اکنون تماس بگیرید

8B2 2.625" Armstrong Series 4300 Ab2 John Crane 8b2 Mechanical Seal

مقدار حداقل تعداد سفارش : 1 قطعه قیمت : USD50-1000
جزئیات بسته بندی : جعبه به عنوان نیاز زمان تحویل : 20-30 روز
شرایط پرداخت : T/T ، Western Union ، L/C قابلیت ارائه : 100000 قطعه در ماه
محل منبع: ساخته شده در چین نام تجاری: JR
گواهی: iso9001 شماره مدل: 8B2

اطلاعات تکمیلی
مادی: sic sic fkm عمل: برای پمپ روغن ، پمپ آب
کد HS: 848420090 گواهی: ISO9001
نوع: برای مهر و موم مکانیکی پمپ آرمسترانگ استاندارد: استاندارد
اندازه: اندازه سفارشی کاربرد: مهر و موم
مشخصات: مهر و موم مکانیکی پمپ آرمسترانگ سبک: مهر و موم مکانیکی 8B2

توضیحات محصول

Mechanical Water Pump Seals Water Pump Seal Replacement Armstrong Pump 1.125" 1.625" 2.125" 2.625"



Operational Conditions:

  1. Armstrong Pump Seal
  2. Armstrong 975002-304 (1.125") Mechanical Seal, 4300, 4302 & 4312 Seal
  3. Temperature: -20ºC to +180ºC
  4. Pressure: ≤2.5MPa
  5. Speed: ≤15m/s

 Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel

Performance Capabilities



Temperature
-40℃ to 200℃, dependent on the elastomer
Pressure
Up to 8 bar
Speed
Up to 18 m/s
End play/axial float allowance
±0.1mm
Size
1.625" 2.125" 2.625"
Brand
JR
Face
Carbon, SiC, TC
Seat
Carbon, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.



Equivalent to John Crane 8B2/US SEAL VGXB2 and Flowserv RA and replacement seals for Armstrong pump series 4300 (OE NO. 975002) and Fybroc pumps.

Seals for Armstrong pumps:
VG-975002304----1 1/8"--------975002-304
VG-975002334----1 5/8"--------975002-334
VG-975002374----2 1/8"--------975002-374
VG-975002394----2 5/8"--------975002-394

and seals for Bell & Gossett series 80-SC.
VG-P75202-----1 1/4"---------P75202
VG-975002334---1 5/8"------P75203

and seals for Fybroc pumps
VG-81375-------1 3/8"--------08976C010
VG-81376-------1 3/8"---------08976C100
VG-82125-------2 1/8"---------08975C010
VG-82126-------2 1/8"---------08975C070
VG-82875-------2 7/8"---------08974C010
VG-82876-------2 7/8"---------08974C010

8B2 2.625" Armstrong Series 4300 Ab2 John Crane 8b2 Mechanical Seal 08B2 2.625" Armstrong Series 4300 Ab2 John Crane 8b2 Mechanical Seal 18B2 2.625" Armstrong Series 4300 Ab2 John Crane 8b2 Mechanical Seal 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
